Holding Magnet
Product Information:
1. Item Name:Holding Magnet
2. Material: Neodymium magnet + iron

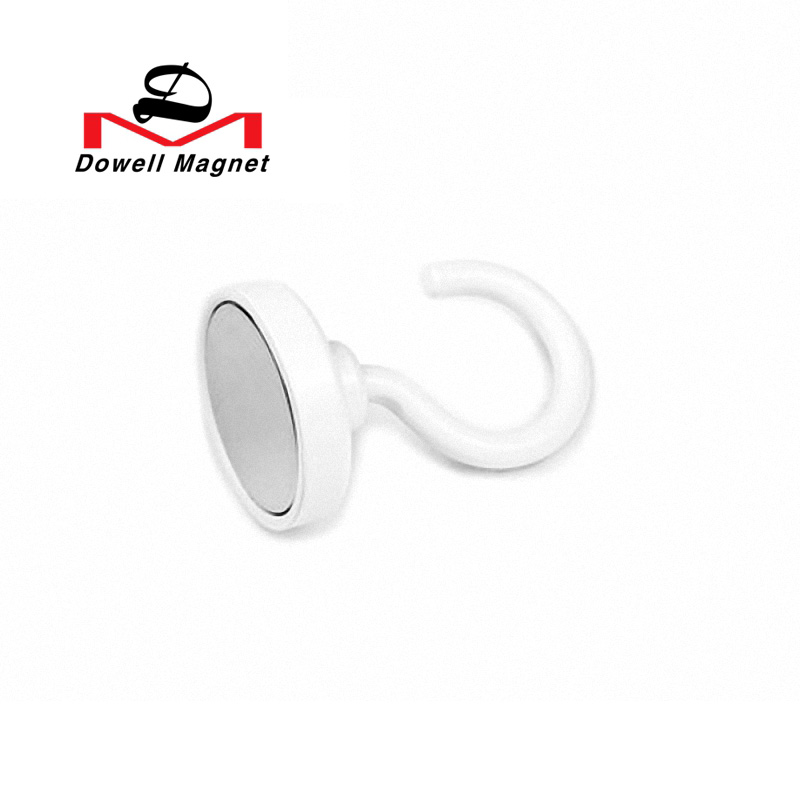

3. Coatings of magnetic hook: Zinc, nickel, black, white or as customer designed color
4. Specification of magnetic hook:

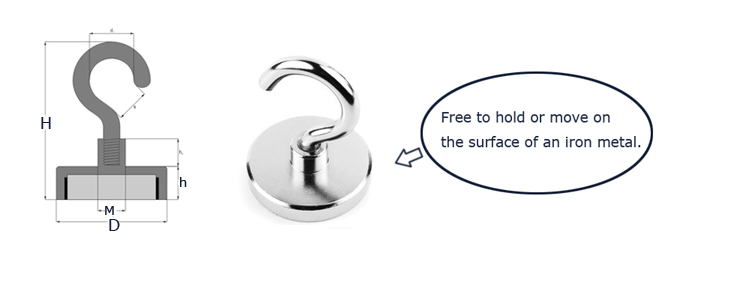

| Item No | D(mm) | M(mm) | h(mm) | H(mm) | Pull Force
(kg) |
| DWMH-16 | 16 | 4 | 5.3 | 12.5 | 5.5 |
| DWMH-20 | 20 | 4 | 7.2 | 15 | 9 |
| DWMH-25 | 25 | 4 | 8 | 15 | 22 |
| DWMH-32 | 32 | 6 | 8 | 18 | 34 |
| DWMH-36 | 36 | 6 | 8 | 18 | 41 |
| DWMH-42 | 42 | 6 | 9 | 20 | 68 |
| DWMH-48 | 48 | 8 | 11.5 | 23 | 81 |
| DWMH-60 | 60 | 10 | 15 | 30 | 113 |
| DWMH-75 | 75 | 10 | 17 | 32 | 164 |

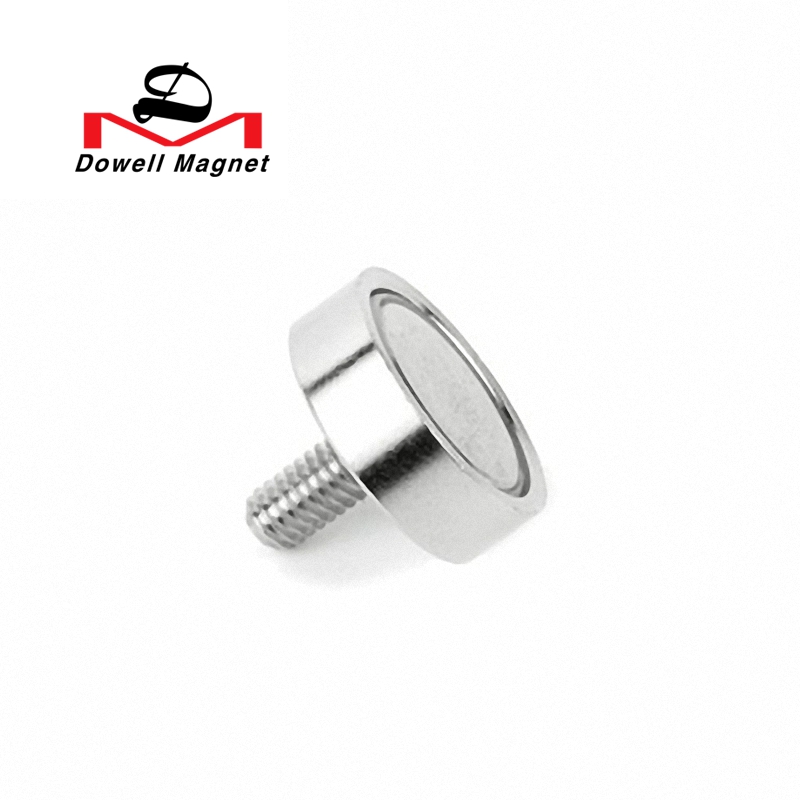

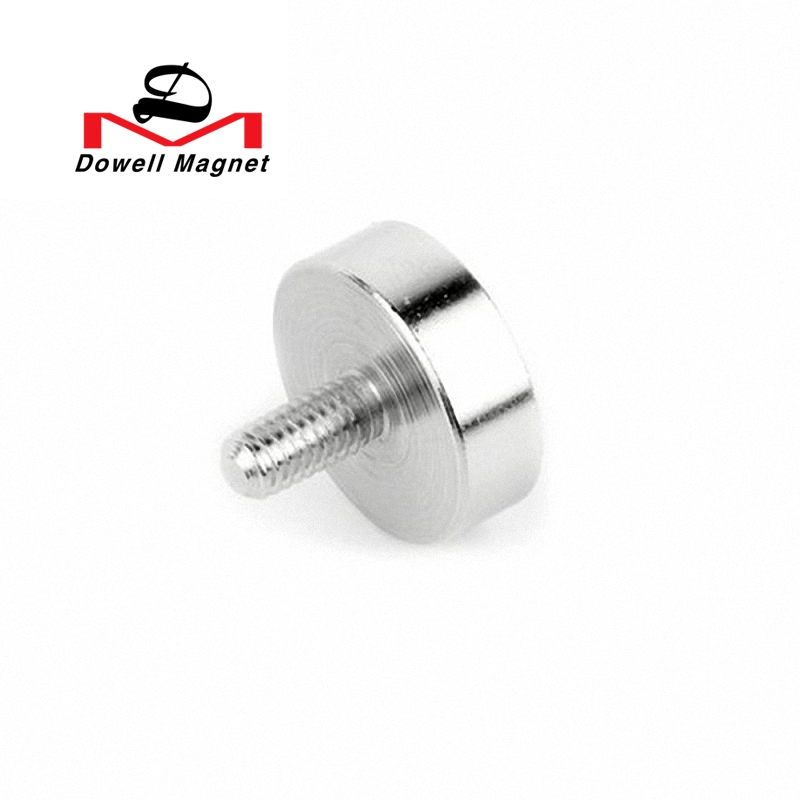

| Item No. | D(mm) | M(mm) | H(mm) | h(mm) | Pull Force |
| DWMS-16 | 16 | 4 | 13 | 5 | 5.5 |
| DWMS-20 | 20 | 4 | 15 | 7 | 9 |
| DWMS-25 | 25 | 5 | 17 | 8 | 22 |
| DWMS-32 | 32 | 6 | 18 | 8 | 34 |
| DWMS-36 | 36 | 8 | 18 | 8 | 41 |
| DWMS-42 | 42 | 8 | 20 | 9 | 68 |
| DWMS-48 | 48 | 8 | 24 | 11.5 | 81 |
| DWMS-60 | 60 | 10 | 30 | 15 | 113 |
| DWMS-75 | 75 | 10 | 34 | 18 | 164 |

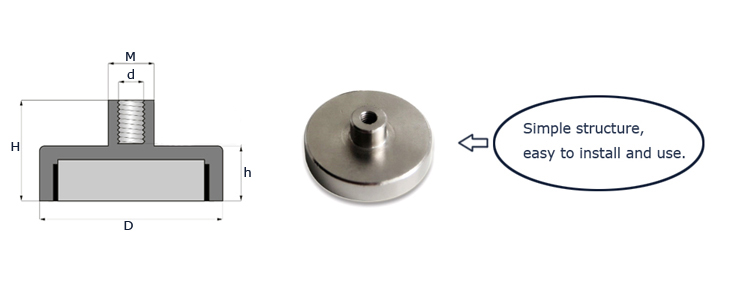

| Item No | D(mm) | M(mm) | d(mm) | H(mm) | h(mm) | Pull Force
(kg) |
| DWIT-16 | 16 | 6 | 4 | 13 | 5 | 5.5 |
| DWIT-20 | 20 | 8 | 4 | 15 | 7 | 9 |
| DWIT-25 | 25 | 10 | 4 | 17 | 8 | 22 |
| DWIT-32 | 32 | 10 | 6 | 18 | 8 | 34 |
| DWIT-36 | 36 | 10 | 6 | 18 | 8 | 41 |
| DWIT-42 | 42 | 12 | 6 | 20 | 9 | 68 |
| DWIT-48 | 48 | 12 | 8 | 24 | 11.5 | 81 |
| DWIT-60 | 60 | 14 | 10 | 30 | 15 | 113 |
| DWIT-75 | 75 | 16 | 10 | 34 | 18 | 164 |

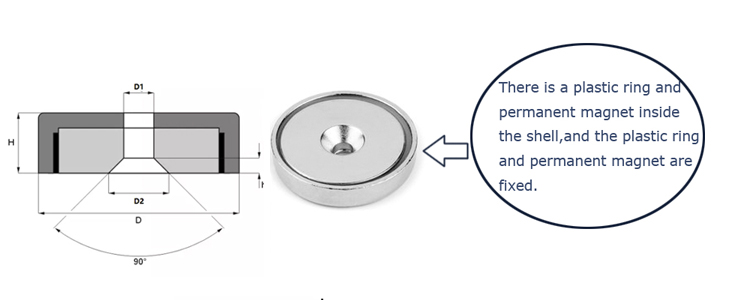

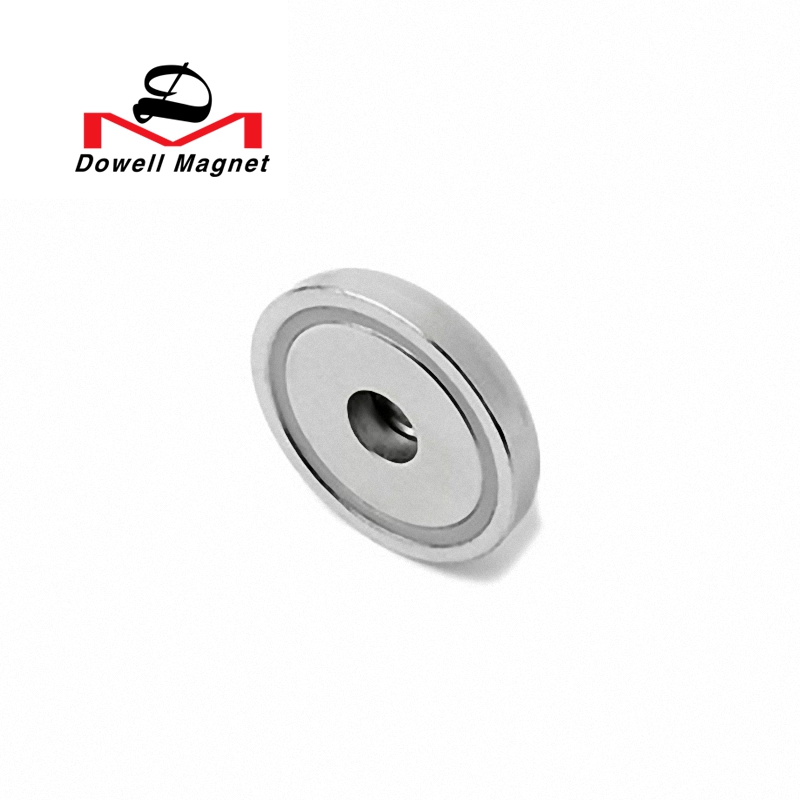

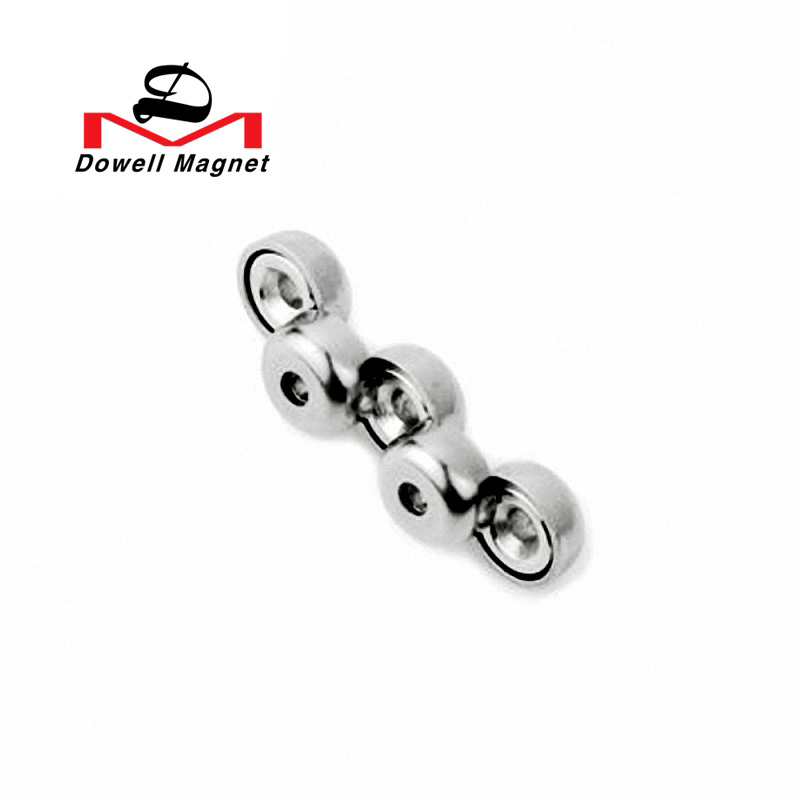

| Item No | D(mm) | D1(mm) | D2(mm) | H(mm) | Pull Force
(kg) |
| DWCH-16 | 16 | 3.5 | 6.5 | 5.2 | 5 |
| DWCH-20 | 20 | 4.5 | 8 | 7.2 | 8 |
| DWCH-25 | 25 | 5.5 | 9 | 7.7 | 20 |
| DWCH-32 | 32 | 5.5 | 9 | 7.8 | 30 |
| DWCH-36 | 36 | 6.5 | 11 | 7.6 | 40 |
| DWCH-42 | 42 | 6.5 | 11 | 8.8 | 65 |
| DWCH-48 | 48 | 8.5 | 15 | 10.8 | 75 |
| DWCH-60 | 60 | 8.5 | 15 | 15 | 110 |
| DWCH-75 | 75 | 10.5 | 18 | 17.8 | 155 |
-
-
-
-
-
-
-
-
-
-
-
