Customized Arc Magnet
Customized Arc Magnet

Customized Arc Magnet

NA02
Share With:
1. Details:

Grade: N45H

Shape: Neodymium arc rare earth magnets

Coating: ParyleneSize: R40-36-28-18L

Tolerance: +/-0.05mm or according to your requirement;

Minimum order quantity: 10pcs

Remarks: other size and shape customs



2. name of neodymium magnets


rare earth, neodymium magnet, magnetic material, Neodymium magnet, NeFeB magnet, neodymium arc segment magnet



3.Shape:


ring, cylinder, block, arc, ladder and any typ with hole.


 4.Grade:



                                   Material Grade of Neodymium Arc Segment Magnet

1

 Magnet N

N35, N38, N40, N42, N45, N48, N50, N52

2

Magnet M

35M, 38M, 40M, 42M, 45M, 48M

3

Magnet H

35H, 38H, 40H, 42H, 45H

4

Magnet SH

30SH, 33SH, 35SH, 38SH, 40SH, 42SH

5

Magnet UH

 28UH, 30UH, 33UH, 35UH

6

Magnet EH

28EH, 30EH, 30EH, 33EH, 35EH


5. Size limitation:


2" max in magnetized direction

5" max diameter for discs and rings

1/32" minimum on thickness

1/16" minimum diameter on outer diameter



 6. Directions of Magnetization:


 a. Thickness Magnetized

 b. Axially Magnetized

 c. Diametrally Magnetized

 d. Multi-poles magnetized

 e. Radial Magnetized

 f. Customzied specific requirements magnetized





7.Various coatings:


 Ni, Zn, Ag, Plastic, Phosphor, Epoxy, Au, Parylene

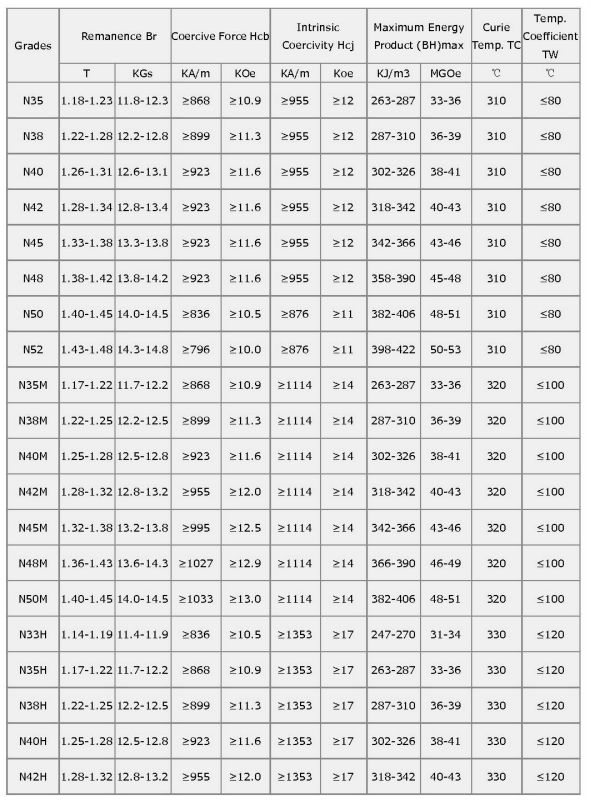

8. Magnetic Characteristics Sheet:
